- 2.0MM Perforated Aluminium Security Mesh

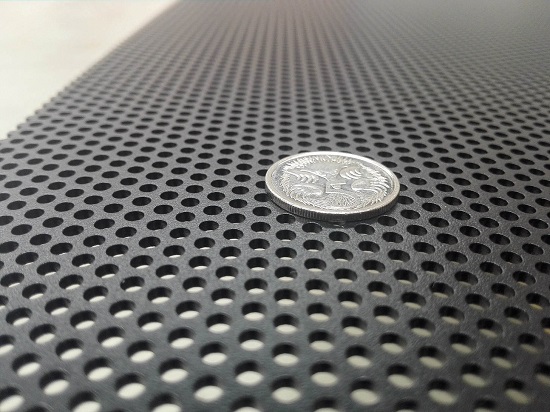

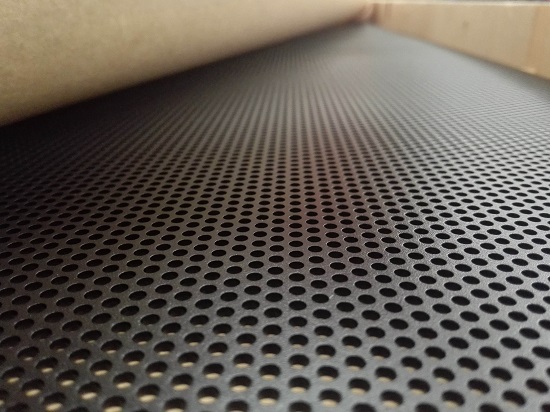

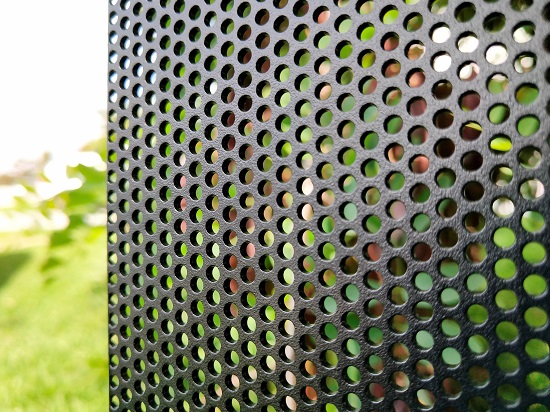

  Our 2.0mm Perforated Aluminium Security Mesh offers a reliable solution for enhanced security. It is important to note that the mentioned thickness refers to the measurement after the application of a durable powder coating. The mesh is constructed from 1.8mm solid aluminium panels, ensuring a sturdy and long-lasting product. Customers have the option to select either the regular 1060 grade aluminium or the marine-grade 5052 aluminium alloy, which is suitable for more demanding requirements.
Following the punching process, our aluminium perforated mesh undergoes a high-quality powder coating treatment.We utilize the renowned Interpon series black powder, manufactured by Akzo Nobel, to provide superior outdoor durability. The resulting thickness ranges from approximately 1.95mm to 2.0mm, with minor tolerances inherent in the production and measurement processes.

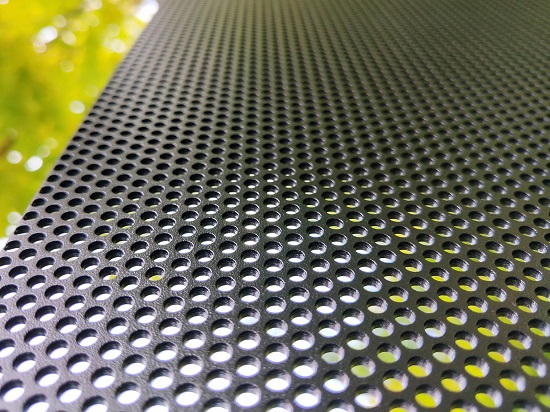

Unlike traditional stainless steel wire mesh security screen door infills, our perforated mesh features a smooth surface that is easy to maintain and clean. Additionally, the stylish round hole staggered pattern offers a visually appealing experience for screen door and window users.
Compared to stainless steel alternatives, our perforated aluminium mesh provides a robust structure for screen doors, ensuring enhanced security and privacy for customers' properties at a relatively lower cost.

◆The Only Hole Size Option
Pattern#:2337OA35, Hole Diameter 2.3mm, Centers 3.7mm, Opening Area: 35%

◆Material Options
Regular 1060 Grade Aluminium Panels,
Marine Grade 5052 Aluminium Panels.

◆Descriptions & Specifications

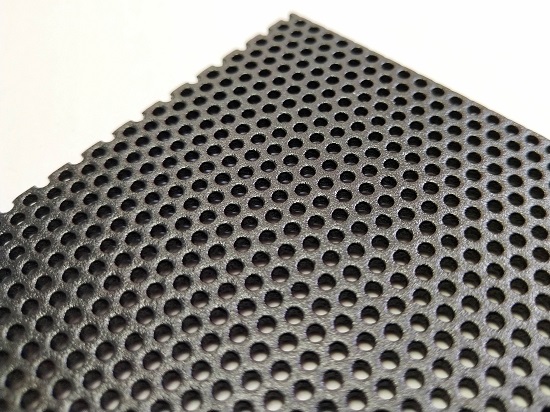

1. Hole Pattern: 60 Degree Staggered Pattern
2. Sheet Thickness before Powder Coating: 1.8MM
Sheet Thickness after Powder Coating: 1.95MM to 2.0MM
3. Hole Diameter & Hole Pitch: 2.3MM / 3.7MM
4. Opening rate: 35%
5. Standard Sheet Sizes:
750 x 2000MM / 750 x 2200MM / 750 x 2400MM
820 x 2000MM / 820 x 2200MM / 820 x 2400MM
900 x 2000MM / 900 x 2200MM / 900 x 2400MM
1200x2000MM / 1200x2200MM / 1200x2400MM
Other custom sizes are accepted.

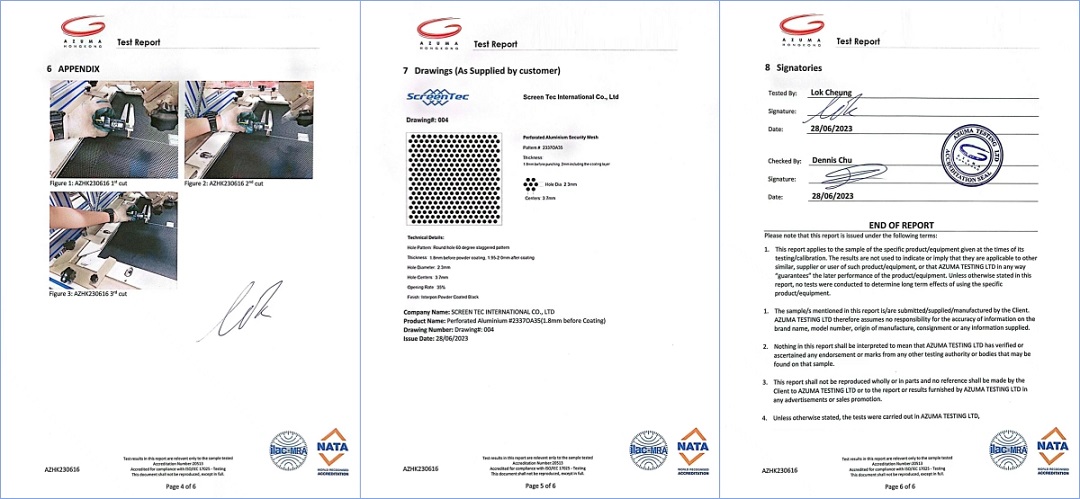

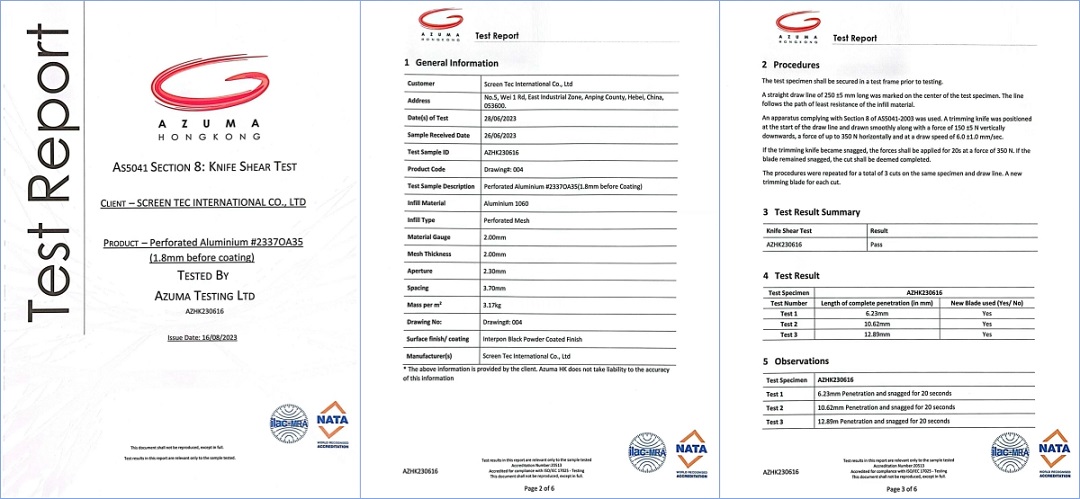

Knife Shear Test: PASS

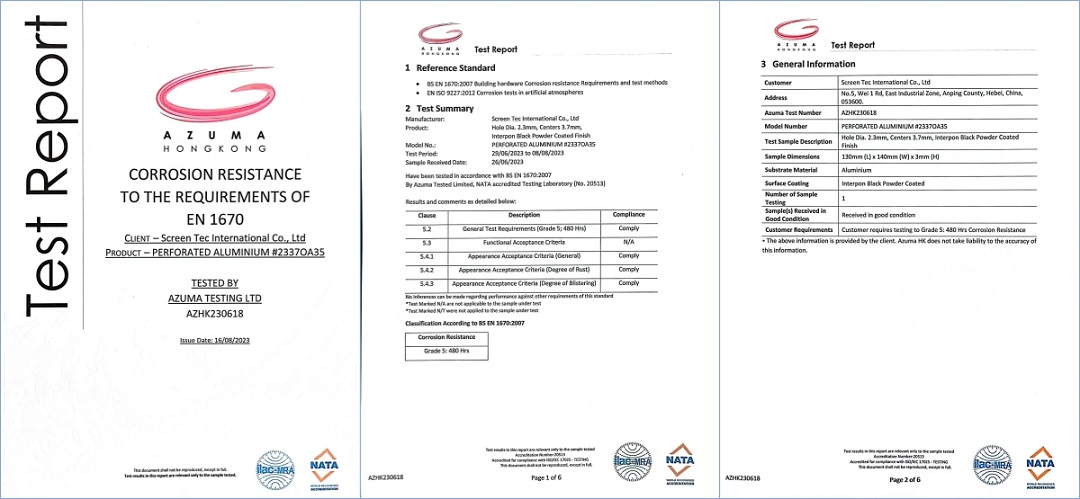

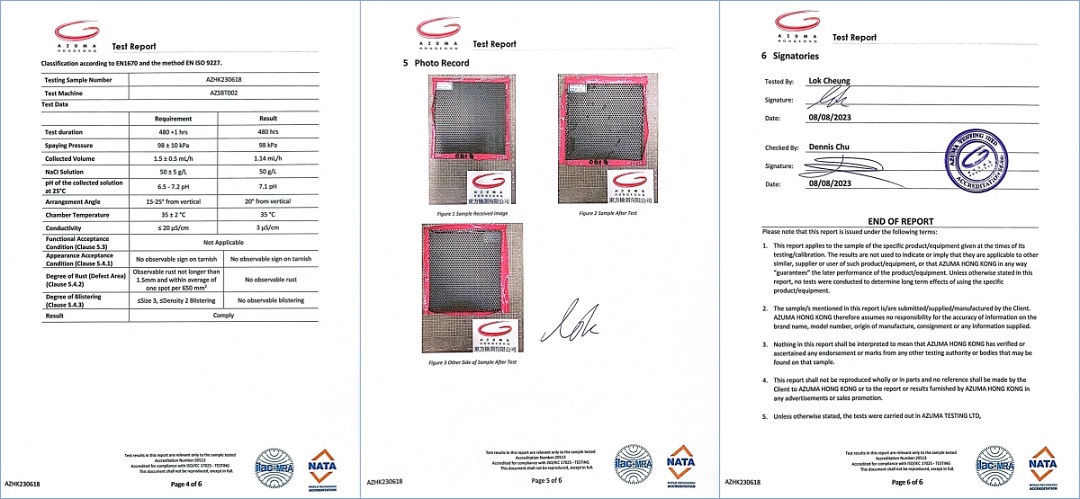

Salt Spray Test: Pass ( 480Hours, Twice the required 240hours standard )
