- 1.8MM Perforated Aluminium Security Mesh

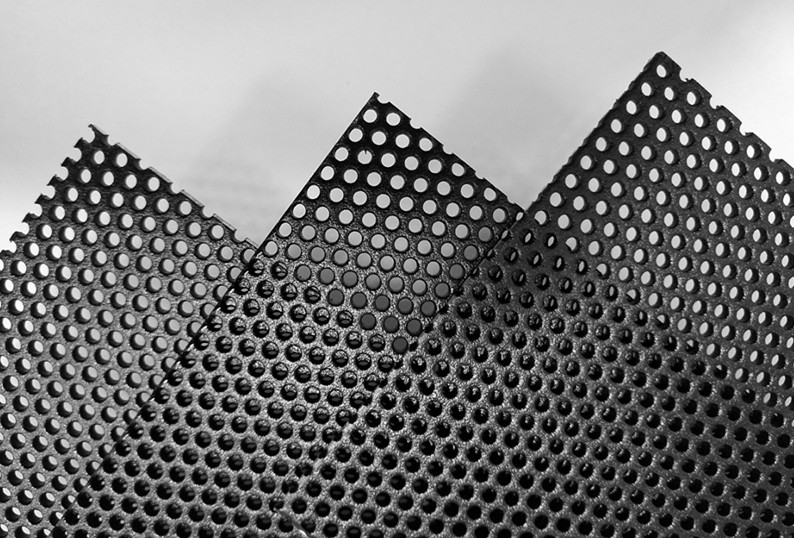

  1.8MM Perforated Aluminium Security Mesh utilizes both 1.6mm regular 1060 grade solid aluminium panels and a higher grade 1.6mm marine-grade 5052 aluminium alloy as its raw material which is then perforated and powder coated to outdoor grade. The thickness will become approx 1.75 to 1.8mm after the sheet is powder coated. Please note that there might be a tiny tolerance during production and measurement.

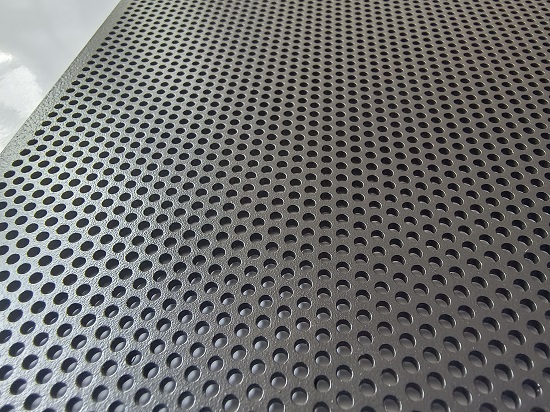

With a smooth surface and an outstanding staggered round dots appearance, perforated aluminium screen doors attract a lot of customers. Compare to its stainless steel counterparts, perforated aluminium mesh offers a stronger structure to the screen doors and more privacy for customers' property but at a relatively lower cost.
Perforated Aluminium Sheet is also well corrosion-resistant, the 1060 grade perforated security mesh is the most cost-effective options but still has a good corrosion resistant property. And the marine grade 5052 aluminium alloy perforated mesh offers an even better weather performance.

◆Hole Size Options
Option 1, Pattern#:2030OA40, Hole Diameter 2mm, Centers 3mm, Opening Area:40%
Option 2, Pattern#:2337OA35, Hole Diameter 2.3mm, Centers 3.7mm, Opening Area: 35%

◆Material Options
Regular 1060 Grade Aluminium Panels.
Marine Grade 5052 Aluminium Panels.

◆Descriptions & Specifications
1. Material Options: Regular 1060 Grade Aluminium Plates or Aluminium Alloy Grade 5052 Aluminium Plates.
2.   Pattern: 60°staggered pattern
3.   Thickness before powder coated: 1.6mm,
Thickness after powder coated:1.75-1.8mm

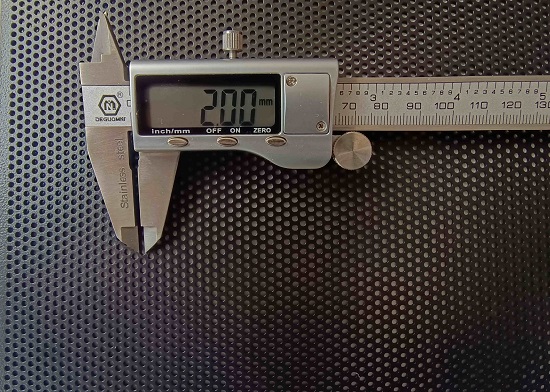

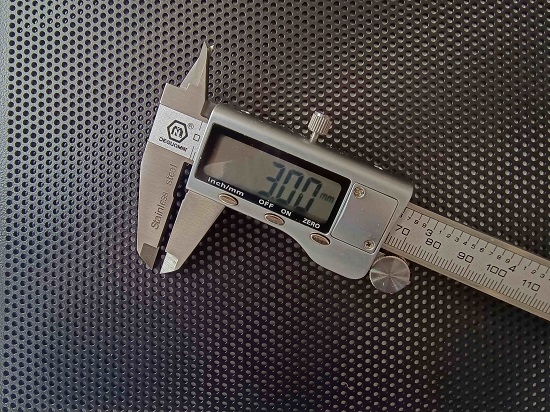

4. Hole Dia. / Centers. 2mm/3mm or 2.3mm/3.7mm
5.   Opening: 40% or 35%
6.   Standard Sheet Sizes:
      750 x 2000mm / 750x2200mm / 750x 2400mm
      900 x 2000mm / 900x2200mm / 900 x 2400mm
      1200 x 2000mm / 1200x2200mm / 1200 x 2400mm
      Other sizes can be customized.
7.   Finish: Powder Coated Matt Black, other color can be customized.
8.   Packing: export standard plywood crate.
9. Application: Security Doors, Front Screen Door that needs more privacy and security.

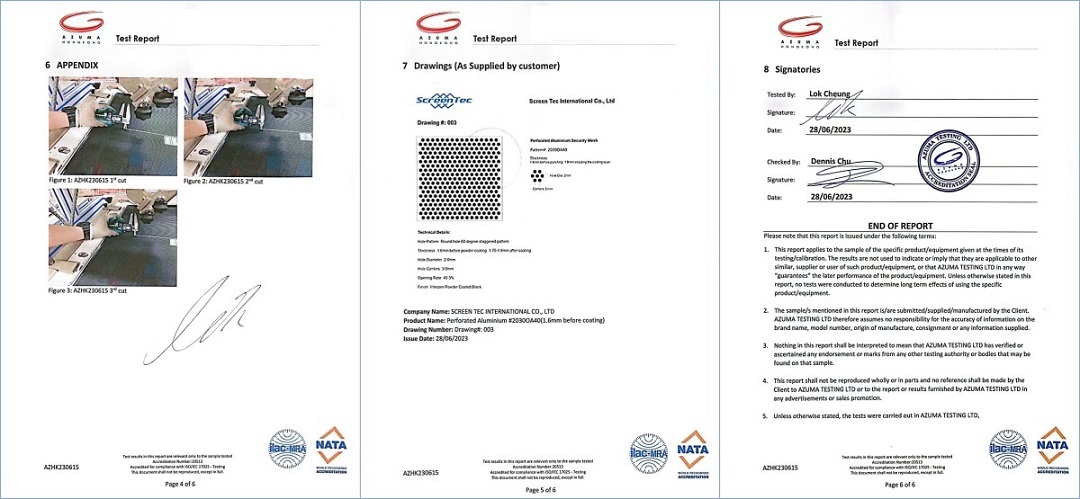

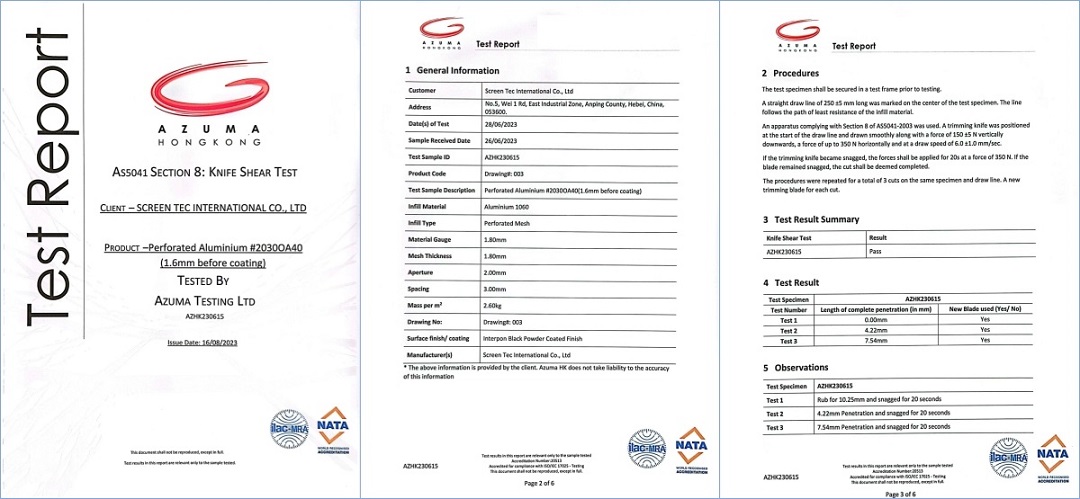

Knife Shear Test    Pass.

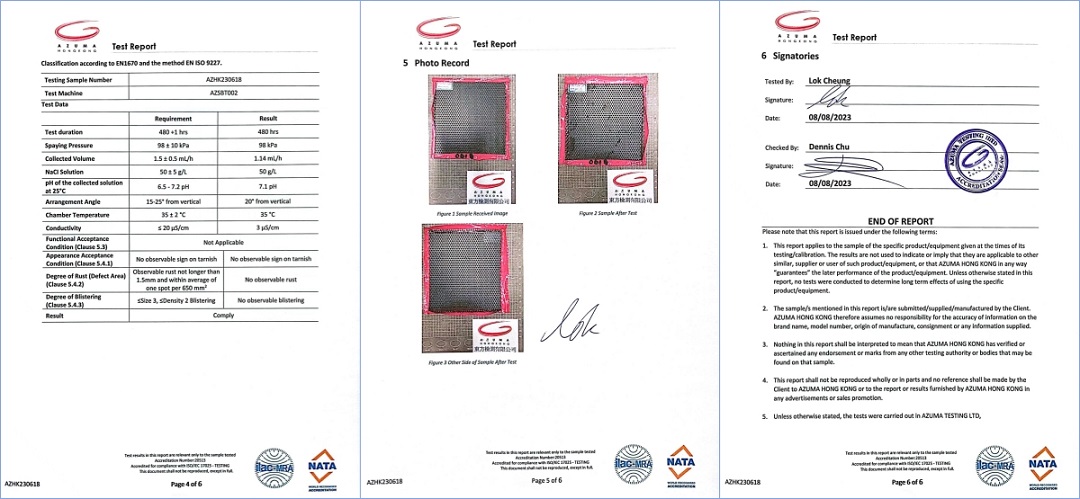

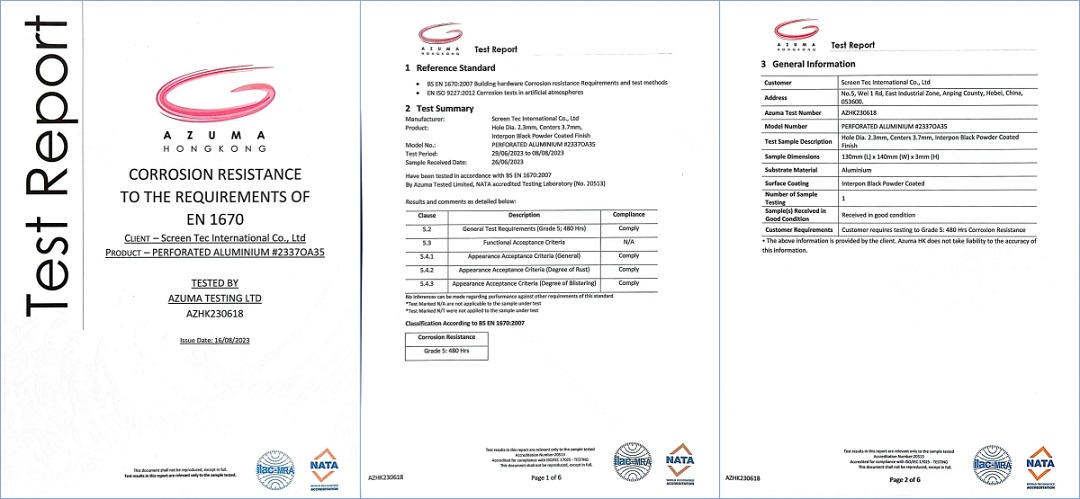

Salt Spray Test     Pass. ( 480Hours, Twice the required 240hours standard )
Bush Fire Grade: Meet with the highest BAL grade.
